KOR| Model | SODM-01 |
| Dimension | 110x75x35mm |
| Weight | 0.15Kg |
| Wi-Fi | IEEE 802.11b/g/n 2.4GHz |
| Dust Sensor Physical Size | 48x37x12 |
| Effective Range(PM2.5) | 0~500㎍/㎥ |
| Maximum Range(PM2.5) | ≤1000㎍/㎥ |
| Range of measurement | 0.3~1.0:2.0~2.5:2.5~10㎛ |
| Dust Sensor Resolution | 1㎍/㎥ |
Room 806-8, Building 114, 50, UNIST-gil, Eonyang-eup, Ulju-gun, Ulsan, Republic of Korea
Tel.82+52-912-4282
Fax.82+52-912-4283
E-mail.sensorwyou@sensorwyou.com
ⓒ SENSOR WITH U. All Rights Reserved.
| Model | SODM-01 |
| Dimension | 110x75x35mm |
| Weight | 0.15Kg |
| Wi-Fi | IEEE 802.11b/g/n 2.4GHz |
| Dust Sensor Physical Size | 48x37x12 |
| Effective Range(PM2.5) | 0~500㎍/㎥ |
| Maximum Range(PM2.5) | ≤1000㎍/㎥ |
| Range of measurement | 0.3~1.0:2.0~2.5:2.5~10㎛ |
| Dust Sensor Resolution | 1㎍/㎥ |

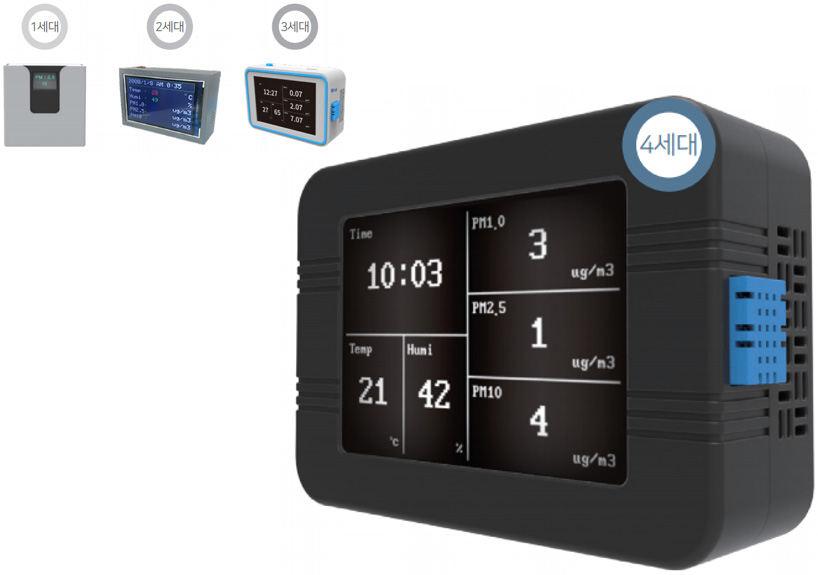

SODM-01 is a dust particle measuring device that provides air quality data. You can access your data anytime, anywhere via Wi-Fi.
| Measurement Item | Fine Dust Concentration (PM1.0, PM2.5, PM10) |
| Measurement Method | Laser Light Scattering Method |
| Measurement Cycle | Real-time Measurement |
| Data Transmission by Wi-Fi, Self-application Interworking | |

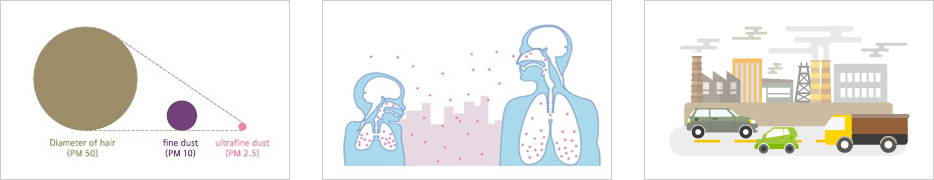

The fine dust in the atmosphere causes respiratory and cardiovascular diseases.
Along the elevation of industrialization level , fine dust level has been increasing steadily in the past 12 years, and economic damage from fine dust is approaching by 11 trillion WON a year.
The fact that only 323 domestic fine dust meters are installed in one unit per 58km2 on average increase the importance of SODM-01. With SODM-01, We can get the exact concentration of fine dust from the air we breath in.
